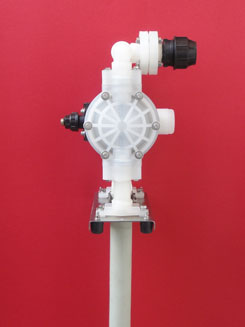

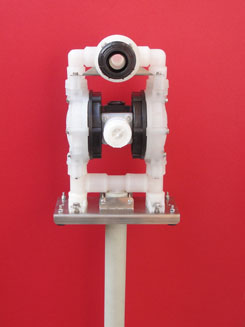

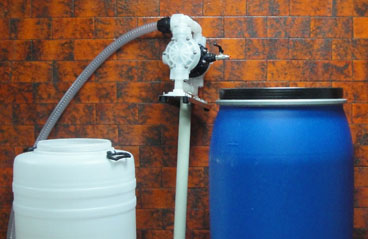

PPDM 62 is a pump with a double membrane operated by compressed air.  It is designed to be used and mounted on top of the barrel/container where the fluid is pumped out.  That is why it’s designed to end with a pipe that is lowered into the fluid bellow. This pump is made from polypropylene. The membrane, depending on the usage, can be NBR, EPDM, NBR for food industry, NR for food industry, Viton и PTFE.


- it’s ideal for aggressive, abrasive or fluids with high viscosity
- it can run endlessly in dry mode
- if the output is blocked there is no danger to the pump
- the pressure air is not greased
- no maintenance needed
- no danger of explosion




Dimensions
Height
Width
Length
Length of input pipe
Weight
Air pressure
Input strength
Output strength
.
382 mm
225 mm
250 mm
1000 mm
4.4 kg
3/8"
22 mm
22 mm


Performances
Maximal throughput
Maximal pressure (air)
Maximal input height in dry mode
Maximal input height in wet mode
Maximal pressure height
Maximal size of particles
Maximal operating temperature


.
120 lpm
8 bar
4.2 m
8 m
50 m
3.5 mm
85 C


Built materials
Pump head and vents: polypropylene
 Vent ball: PTFE, 304 SS
 Slot of the vent ball: polypropylene, 304 SS
 Membranes: NBR, EPDM, NBR for food industry, NR for food industry, Viton и PTFE
