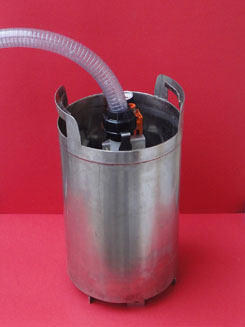

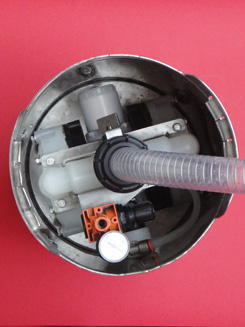

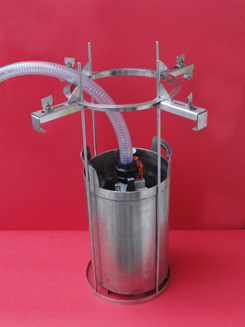

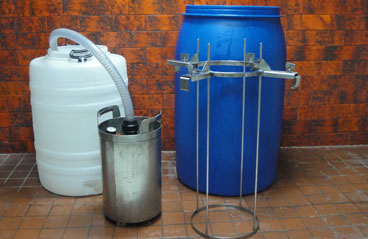

PPDM 63P is a pump with a double membrane operated by compressed air.  It is designed to be used for extremely high viscosity materials, pastes, creams, oils, gels and similar. The pump is set in a pro-chrome casing that is dipped into the material.  The membrane, depending on the usage, can be NBR, EPDM, NBR for food industry, NR for food industry, Viton и PTFE.
The vent case, the slot for the vent and the vent plate is made out of stainless steel (304 SS). The dimension of the vents are increased which is needed for high viscosity fluids.


- it’s ideal for aggressive, abrasive or fluids with high viscosity
- it can run endlessly in dry mode
- if the output is blocked there is no danger to the pump
- the pressure air is not greased
- no maintenance needed
- no danger of explosion





Dimensions
Height
Diametar
Weight
Air inlet
Output strength
.
450 mm
Ф 270 mm
10.3 kg
3/8”
32 mm


Performances
Maximal throughput
Maximal pressure (air)
Maximal pressure height
Maximal size of particles
Maximal operating temperature


.
120 lpm
8 bar
50 m
5 mm
85 C


Built materials
Pump head: polypropylene
Casing: 304 SS
Outlet: 304 SS
Vent casing: 304 SS
Vent plate: 304 SS
Slot of the vent ball: 304 SS
Membranes: NBR, EPDM, NBR for food industry, NR for food industry, Viton и PTFE
